BENOY Dimension and Parameters
BENOY BENOY
  •

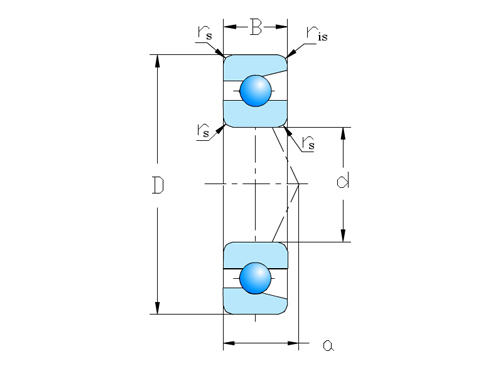

  • Boundary dimensions(mm)
  • d
    80
  • D
    100
  • B
    10
  • rs min
    0.6
  • r1s min
    0.6
  • Basic load ratings(kN)
  • Cr
    15.1
  • Cor
    17.6
  • Limiting speeds(rpm)
  • Grease
    9,100
  • oil
    12,000
  • Mass(Kg)
  • (Approx.)
    0.146
  • Bearing Number
  • BENOY
    7816C
