Home > Deep groove ball bearings > Single row Open type > 68 Series
E-catalog

Deep groove ball bearings > Single row Open type > 68 Series

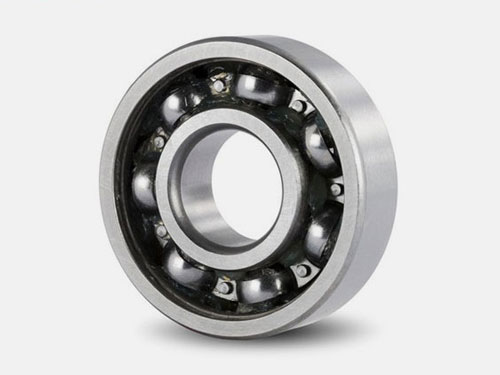

  • Product

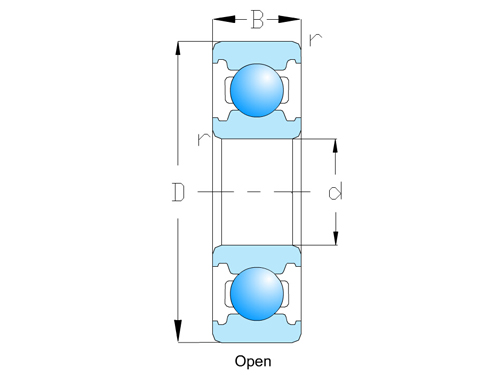

  • Structure Chart
68 Series 68 Series
68 Series 68 Series
BENOY Contact
Phone：+86 13969589008
E-mail：info@benoybearing.com
Address：Yandian industrial zoon,Linqing city,Shandong,China
Inquiry
BENOY Dimension and Parameters
BENOY BENOY
  •
  • Boundary dimensions(mm)
  • d
    17
  • D
    26
  • B
    5
  • rs min
    0.3
  • Basic load ratings(kN)
  • Cr
    2.23
  • Cor
    1.46
  • Limiting speeds(rpm)
  • Grease
    24,000
  • oil
    28,000
  • Mass(Kg)
  • (Approx.)
    0.008
  • Bearing Number
  • BENOY
    6803C3
